Choudhary, Agrawal, Garg, Inamdar, and Verma: Long-term clinical results of autologous Platelet Rich Plasma (PRP) in recalcitrant plantar fasciitis


Plantar heel pain is a frequent concern seen by orthopedic surgeons. One of every ten people will experience heel pain at any point in their lives.1 Plantar fasciitis (PF) affects 15% of all patients complaining of plantar heel pain, according to Rome et al., in both nonathletic and athletic populations.2

The most frequent cause of plantar heel pain is plantar fasciitis (PF). 1 Plantar fasciitis is usually unilateral, although up to 30% of cases may appear bilaterally.3 It is a degenerative disease of the plantar fascia caused by repetitive trauma at its origin on the calcaneus. It is primarily a clinical diagnosis distinguished by infero-medial heel pain, which is frequently exacerbated by the first few step in the morning.2, 3, 4 Overweight individuals, people who stand for long periods at work, and persons whose occupations need them to walk on uneven surfaces are more prone to it.2, 4, 5

Conservative therapy, such as stretching exercises for the Achilles tendon and plantar fascia, cushioned insoles or orthotics to correct biomechanical causes, night splints, movement adjustment, and the use of basic analgesics, may resolve symptoms in the majority of instances.1, 3 Approximately 10% of patients do not respond to conservative therapy and must undergo invasive therapy.6 In the second line of therapy, corticosteroid injection is used. However, steroid injection has been related to several complications such as skin atrophy, fat pad atrophy, and plantar fascia rupture.7 Surgical fascia release should be seen as a last resort, and its success rate has been variable.8

In recent years, biologic therapies such as platelet-rich plasma (PRP) have gained importance in multiple orthopedics degenerative tendinopathy and ligamental pathology. Platelet-rich plasma (PRP) is characterized as an autologous blood sample with platelet concentrations above baseline.9 Platelets play an important part in the natural healing response by secreting growth factors locally and recruiting reparative cells.10, 11 This research aimed to assess the clinical effectiveness of autologous platelet-rich plasma injection in cases of recalcitrant plantar fascitis (RPF) over a long period.

Materials and Methods

From December 2013 to March 2018, a prospective observational study was performed at a tertiary orthopedics center after ethical committee acceptance following the Helsinki declaration. Patients with RPF that did not experience pain relief after three months of conservative therapy were included in the study. Radiological evaluation was obtained to rule out other factors such as a calcaneal tumor, fracture-dislocation of tarsal bones, stress fracture, or metabolic infection that were omitted from the study. Patients who had previously received a local steroid injection or a surgical procedure were also disqualified. RPF patients who had given written informed consent were considered for autologous PRP injection.

Under sterile conditions, blood was drawn from the patient's antecubital vein and placed directly in a tri-sodium citrate vacutainer vials, seven vials (approx. 21 ml) for bilateral RPF and four (approx. 12 ml) for unilateral RPF. The standing system was used for the initial plasma separation (vial was left in standing position for 1hour). After 1 hour, the vacutainer vials were spun at a speed of 1600 rpm for ten minutes. PRP was isolated at the top of the vial, followed by a yellow buffy coat rich in white blood cells and red blood cell sediment at the bottom. PRP just above the yellow buffy layer was separated. PRP with platelet counts greater than 2.5 times that of the patient's blood platelet counts was approved for injection.

A peppering technique (single skin entry, partially withdrawing the needle, redirecting in a clockwise direction, and allowing repeated penetrations to the fascia, injecting just above and just below plantar fascia) was used to inject approximately 3ml of platelet-rich plasma mixed with 0.5ml lignocaine into the maximum tender point of the heel.

Patients are advised to refrain from engaging in sports activities such as running or jumping for at least four weeks. Nonsteroidal anti-inflammatory medications were typically discouraged because they interfered with the post-injection inflammatory healing mechanism. Opioids Analgesics were used when needed.

Both pre-injection and post-injection patients were evaluated for clinical improvement using the Visual Analogue Score for Pain and the American Orthopedics Foot and Ankle Society (AOFAS) Ankle and Hind Foot Score at one month, three months, six months, one year, and two years after injection.

The Visual Analogue Scale (VAS) measures the pain level that a patient experiences on a scale ranging from zero to extreme pain. A VAS is usually a horizontal line of 100 mm length, with word descriptors at either end. Pain evaluation is inherently subjective.12 The ankle hindfoot score systems developed by the American Orthopaedic Foot and Ankle Society (AOFAS) combine both subjective and objective variables into numerical measures to describe a function, alignment, and pain 13. According to the available literature, several researchers used this scoring method to measure RPF pain and assess the effectiveness of different treatment modalities.

Statistical analysis

For categorical variables, values are presented as frequency, and for continuous variables, values are presented as mean, standard deviation, and standard error of the mean. With the student t-test (paired T-test) and ANOVA test, clinical progress assessments, mean VAS, and AOFAS were compared with consecutive follow-up visits. Statistical significance is defined p-value less than 0.05. SPSS version 25 was used to analyze the data (SSPS, Chicago, IL).


A total of 60 patients of RPF who met inclusion and exclusion criteria were undergone autologous PRP injection which 23(38.33%) were male, and the rest 37(61.66%) were female. 13(21.66%) had bilateral affection, and the rest 47(78.33%) patients have unilateral side. In unilateral RPF patients, 22 (36.66%) affected heels belong to the left side and 25 (41.66%) affected heels to the right side. The mean age of patients was 45 ± 7.25 years. The mean duration of symptoms was 7.4 ± 2.1months. The mean BMI was 29.57 ± 1.87 kilograms/meter2. 31.66 % of RPF patients had sedentary daily activity, 28.33 % moderately active, and 40 % heavy or long-standing activity lifestyles (Figure 1).

Two patients at 6 months, one more patient at 12 months, and three more patients at the 2-year visit were lost to follow-up. Two patients did not improve till six months post-injection visit and had intractable pain for which these underwent steroid injection.

The mean visual analog score for pain and the AOFAS hindfoot scores were used to determine the functional outcome of autologous PRP in RPF. The mean VAS score was 7.92 ± 1.2 at pre-injection, was progressively reduced post-injection to 5.61 ± 1.56 at one month, 3.1± .83 at three months, and 2.4 ± .68 at six months and remained at low level 2.5 ± .92 at one year and 2.7 ± .56 at two years. Mean VAS score shows statistically significant pain reduction at successive follow-ups until 6month (p < .05), relief of heel pain remained constant and did not improve significantly until the last appointment at 2year follow-up (p > 0.05) (Table 1) (Figure 1).

The mean AOFAS score was 56.92 ± 13.24 at pre-injection, was progressively increased post-injection to 66.41 ± 10.26 at one month, 78.31 ± 12.64 at three months, and 90.54 ± 10.71 at six months and remained at a low level 89.24 ± 8.92 at one year and 87.54 ±10.56 at two years. Mean AOFAS score showed statistically significant improvement of function level at successive follow-ups until 6month (p < 0.05); the improvement remained constant and did not improve significantly until the last appointment at 2 year follow-up (p > 0.05) (Table 2)(Figure 2).

Figure 1

Line graph show progression of mean VAS scores at various follow-up visits.

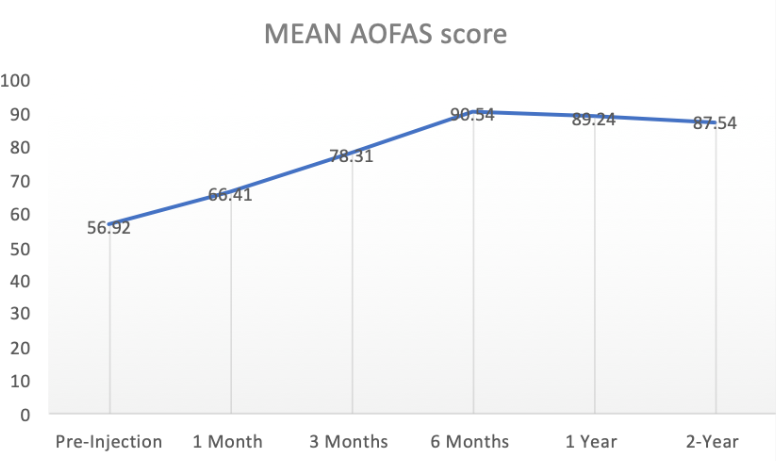

Figure 2

Line graph shown the progression of mean AOFAS hindfoot scores at various follow-up visits.

Table 1

Demographic details of recalcitrant plantar fasciitis patients

Number (n)

Percentage (%)

Age (years)







40- 60


















a) Left



b) Right



BMI (kg/meter2)

< 18.5



18.5 - 25






Daily Activity Level







Prolong standing



Table 2

linical assessment with VAS and AOFAS scores various follow-up visits and comparisons between a sequential visit with paired T-test.

Number (n)


Std. Deviation








1 Month





3 Months





6 Months





1 Year
















1 Month





3 Months





6 Months





1 Year











Plantar fasciitis (PF) is usually treated with rest, analgesics, and stretching exercises. Injections, especially corticosteroids, are administered in situations where conservative measures have failed. Corticosteroids have a fast relief for pain relief, with a large proportion of patients experiencing relapse and recurrence on long follow-up.3, 6, 14 In recent years, there has been a growth in PRP use in a variety of therapeutic circumstances such as epicondylitis, rotator cuff, patellar and calcaneal tendinopathies, and proximal plantar fasciitis.9

PRP contains a higher concentration of platelets than whole blood. The reason for using PRP is to improve tendon regenerative abilities by delivering cytokines in hyper-physiologic concentrations, which could stimulate cellular chemotaxis, matrix synthesis, and proliferation.10

This study aimed to assess the clinical short-, mid-, and long-term outcomes of autologous PRP injection RPF. Mean VAS and AOFAS scores showed statistically significant pain reduction and functional improvements at successive follow-ups till 6month (p.05); the improvement remained stable and did not change significantly until the last appointment at 2 year follow-up (p> 0.05).

Similarly, Malley et al. retrospectively analyzed chronic plantar fasciitis patients treated with PRP and found that the mean VAS score improved substantially from 6.91 pre-injection to 4.5 at four weeks post-injection. Three of the five FAOS domain' post-injection ratings, including symptoms, pain, and quality of life, improved significantly compared to pre-injection scores, and most of the patients were able to avoid further surgery owing to the PRP injection's improvement. 15

Aksahin et al. compared the effectiveness of PRP injections and corticosteroid injections in treating chronic plantar fasciitis. The patients were assigned into two groups: those who received a corticosteroid injection and those who received a PRP injection. They discovered no significant difference in pain improvement or functional satisfaction in either category after a 6-month follow-up, showing that PRP is just as successful as steroid without the complications such as fat pad atrophy, plantar fascia failure, and calcaneal osteomyelitis following corticosteroid injections. 16

Since most studies evaluating the function of PRP in chronic plantar fasciitis were performed with brief follow-up, there is a possibility that the benefit of PRP's regenerative capacity would not be seen in short-term follow-up.15, 16, 17, 18, 19, 20 As a result, our review included short, mid, and long-term follow-ups in determining the long-term effect of PRP in cases of RPF.

Monto et al. investigated Forty patients with unilateral chronic plantar fasciitis, were randomly assigned to receive either a single injection of 3 cc PRP or a single injection of 40 mg Depo Medrol cortisone. The cortisone group's pre-treatment mean AOFAS score increased at three months but declined at six months, then fell to near baseline values at one year and continued to slide to a final score at two years. In comparison, the pre-treatment AOFAS score in the PRP category rose at three months and remained elevated at 6 and 12 months 24 months.21 In comparison to Monto et al., s study, which included only unilateral cases of chronic plantar fasciitis patients, we included bilateral RPF cases, providing more credibility to our observations.

We did not find any significant complications with PRP injection in our research, as indicated with steroid use in the literature. However, we did notice mild complications such as welling and a rise in discomfort, which were treated with simple interventions.

We were unable to compare outcomes to other treatment modalities due to the lack of a control group in our report; therefore, a comparison study with a larger sample of RPF patients versus other conventional treatment modalities is needed to further validate the efficacy of PRP. Our study's PRP preparation was performed using a basic manual procedure, which may be coupled with various biases attributable to technician experience and laboratory facilities. As a result, standardization of manual PRP techniques is needed.


The outcomes of autologous PRP injection in recalcitrant plantar fasciitis are reliable, stable, and predictable in both long- and short-term follow-up. PRP injection is safer and not associated with serious complications as in the case of steroid injection. As a result, PRP injection could be prioritized over steroid injection in RPF cases.

Source of Funding

No financial support was received for the work within this manuscript.

Conflict of Interest

The authors declare they have no conflict of interest.



F Crawford D Atkins J Edwards Interventions for treating plantar heel painCochrane Database Syst Rev20003CD00041610.1002/14651858.CD000416


K Rome T Howe I Haslock Risk factors associated with the development of plantar heel pain in athletes Foot20011131192510.1054/foot.2001.0698


J Alvarez-Nemegyei JJ Canoso Heel pain: diagnosis and treatment, step by step.Cleve Clin J Med20067354657110.3949/ccjm.73.5.465


R Choudhary K Kunal Modifiable Risk Factors of Plantar Fasciitis in Non-Athletic Patients and Proposal of a New Objective Assessment System- RKISPRev Bras Ortop202010.1055/s-0040-1716762


D L Riddle M Pulisic P Pidcoe R E Johnson Risk factors for Plantar fasciitis: a matched case-control studyJ Bone Joint Surg Am20038558727


PF Davis E Severud DE Baxter Painful Heel Syndrome: Results of Nonoperative TreatmentFoot Ankle Int19941510531510.1177/107110079401501002


JI Acevedo JL Beskin Complications of Plantar Fascia Rupture Associated with Corticosteroid InjectionFoot Ankle Int199819291710.1177/107110079801900207


MP Snider WG Clancy AA Mcbeath Plantar fascia release for chronic plantar fasciitis in runnersAm J Sports Med1983114215910.1177/036354658301100406


I Andia M Abate Platelet-rich plasma injections for tendinopathy and osteoarthritisInt J Clin Rheumatol20127439741210.2217/ijr.12.36


V Pavlovic M Ciric V Jovanovic P Stojanovic Platelet Rich Plasma: a short overview of certain bioactive componentsOpen Med2016111242710.1515/med-2016-0048


N Hussain H Johal M Bhandari An evidence-based evaluation on the use of platelet rich plasma in orthopedics – a review of the literatureSICOT-J201735710.1051/sicotj/2017036


ME Wewers NK Lowe A critical review of visual analogue scales in the measurement of clinical phenomenaRes Nurs Health19901342273610.1002/nur.4770130405


HB Kitaoka IJ Alexander RS Adelaar JA Nunley MS Myerson M Sanders Clinical Rating Systems for the Ankle-Hindfoot, Midfoot, Hallux, and Lesser ToesFoot Ankle Int19941573495310.1177/107110079401500701


P Mahindra M Yamin HS Selhi S Singla A Soni Chronic Plantar Fasciitis: Effect of Platelet-Rich Plasma, Corticosteroid, and PlaceboOrthopedics2016392285910.3928/01477447-20160222-01


MJ O’Malley JT Vosseller Y Gu Successful Use of Platelet-Rich Plasma for Chronic Plantar FasciitisHSS2013921293310.1007/s11420-012-9321-9


E Akşahin D Doğruyol HY Yüksel O Hapa Ö Doğan L Çelebi The comparison of the effect of corticosteroids and platelet-rich plasma (PRP) for the treatment of plantar fasciitisArch Orthop Trauma Surg20121326781510.1007/s00402-012-1488-5


K Jain PN Murphy TM Clough Platelet rich plasma versus corticosteroid injection for plantar fasciitis: A comparative studyFoot2015254235710.1016/j.foot.2015.08.006


TG Lee TS Ahmad ntralesional autologous blood injection compared to corticosteroid injection for treatment of chronic plantar fasciitis. A prospective, randomized, controlled trialFoot Ankle Int200728998490


M Tiwari R Bhargava Platelet rich plasma therapy: A comparative effective therapy with promising results in plantar fasciitisJ Clin Orthop Trauma20134131510.1016/j.jcot.2013.01.008


R Choudhary P Chaudhary A Sud S Ramavat Efficacy Of Autologous Plateletrich Plasma Injection In Cases Of Proximal Plantar Fascitis Which Have Failed Conservative ManagementInt J Sci Res2017683724


RR Monto Platelet-Rich Plasma Efficacy Versus Corticosteroid Injection Treatment for Chronic Severe Plantar FasciitisFoot Ankle Int2014354313810.1177/1071100713519778
